Product Description
รายละเอียดคุณลักษณะจำเพาะ

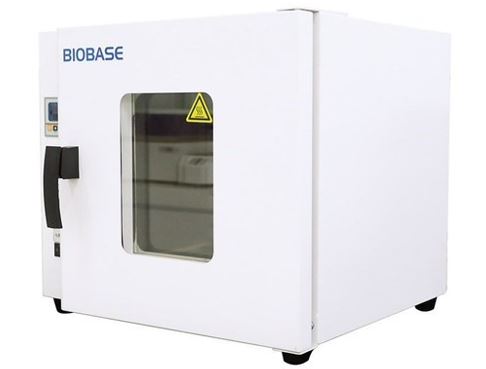

Forced Air Drying Oven ,รุ่นBOV-V70F, ยี่ห้อ Biobase
1. External material: cold-rolled steel with anti-bacteria powder coating.
2. Stainless steel inner chamber, round angle structure, adjustable shelves.
3. Double-layer glass observation window, adjustable airtight buckle lock.
3.PID microprocessor intelligent temperature controller.
4. Over-temperature protection.
5. Optional independent temperature protector
TECHNICAL PARAMETERS FOR Hot Vertical Type Forced Air Drying Oven
| Model | BOV-V30F | BOV-V35F | BOV-V45F | BOV-V65F |
BOV-V70F |
BOV-V125F |
| Capacity | 30L | 35L | 45L | 65L | 70L | 125L |
| Temp. Range | RT+10 ~300℃ | RT+10 ~250℃ | RT+10~ 300℃ | RT+10 ~300℃ | RT+10~ 250/ 300℃ | RT+10~ 300℃ |
| Temp. Precision | 0.1℃ | |||||
| Temp. Fluctuation | ±0.5℃ | |||||
| Ambient Temp. | 5~40℃ | |||||
| Timing Range | 1~9999min | |||||
| Shelves No. | 2 pcs | |||||
| Display | LED | LCD | LED | LED | LCD | LED |
| Power Consumption | 800W | 550W | 1200W | 1600W | 1050W | 2300W |
| Power Supply | 220V±10%, 50/60Hz; | 220V/110V ±10%, 50/60Hz; | 220V±10%, 50/60Hz; | 220V±10%, 50/60Hz; | 220V/110V ±10%, 50/60Hz; | 220V±10%, 50/60Hz; |
| Internal Size (W*D*H)mm | 310*310 *310 | 340*320 *320 | 350*350 *350 | 400*360 *450 | 400*350*500 | 500*450*550 |
| External Size (W*D*H)mm | 460*510 *695 | 620*530 *490 | 500*550 *735 | 540*550 *840 | 550*550*860 | 636*680*915 |
| Packing Size (W*D*H)mm | 550*570 *765 | 640*615 *790 | 620*585 *800 | 640*640 *905 | 680*680*990 | 730*720*1000 |
| Gross Weight(kg) | 51 | 55 | 56 | 61 | 75 | 71 |
| Model | BOV- V136F | BOV-V225F | BOV- V230F | BOV-V429F | BOV-V625F | BOV-V640F | BOV-V960F |
| Capacity | 136L | 225L | 230L | 429L | 625L | 640L | 960L |
| Temp. Range | RT+10 ~250 /300℃ | RT+10 ~250 /300℃ | RT+10 ~300℃ | RT+10 ~250 /300℃ | RT+10 ~300℃ | RT+10 ~250 /300℃ | RT+10~250 /300℃ |
| Temp. Precision | 0.1℃ | ||||||
| Temp. Fluctuation | ±0.5℃ | ||||||
| Ambient Temp. | 5~40℃ | ||||||
| Timing Range | 1~9999min | ||||||
| Shelves No. | 2 pcs | 3 pcs | 4 pcs | 5 pcs | |||
| Display | LCD | LCD | LED | LCD | LED | LCD | LCD |
| Power Consumption | 1500W | 2100W | 3000W | 4000W | 5000W | 4500W | 6000W |
| Power Supply | 220V/ 110V± 10%, 50/60Hz; | 220V/110V ±10%, 50/60Hz; | 220V±10%, 50/60Hz; | 380V/50HZ | |||
| Internal Size (W*D*H)mm | 450*550 *550 | 500*600 *750 | 600*500 *750 | 600*550 *1300 | 660*760 *1250 | 800*600 *1300 | 1000*600 *1600 |
| External Size (W*D*H)mm | 600*745 *900 | 650*805 *1100 | 730*670 *1220 | 745*750 *1670 | 895*925 *1830 | 950*790 *1675 | 1140*800 *2150 |
| Packing Size (W*D*H)mm | 730*860 *1030 | 780*880 *1210 | 900*800 *1350 | 880*880 *1820 | 1000*1080 *2000 | 1050*870 *1795 | 1220*890 *2190 |
| Gross Weight(kg) | 95 | 110 | 105 | 145 | 160 | 170 | 230 |
