Extrapid Manual Cartridge-Disk SPE ​ยี่ห้อ Lab Tech

Extrapid Manual Cartridge-Disk SPE

ยี่ห้อ LABTECH

ประเทศ USA

View More

เปรียบเทียบสินค้า

Product Description

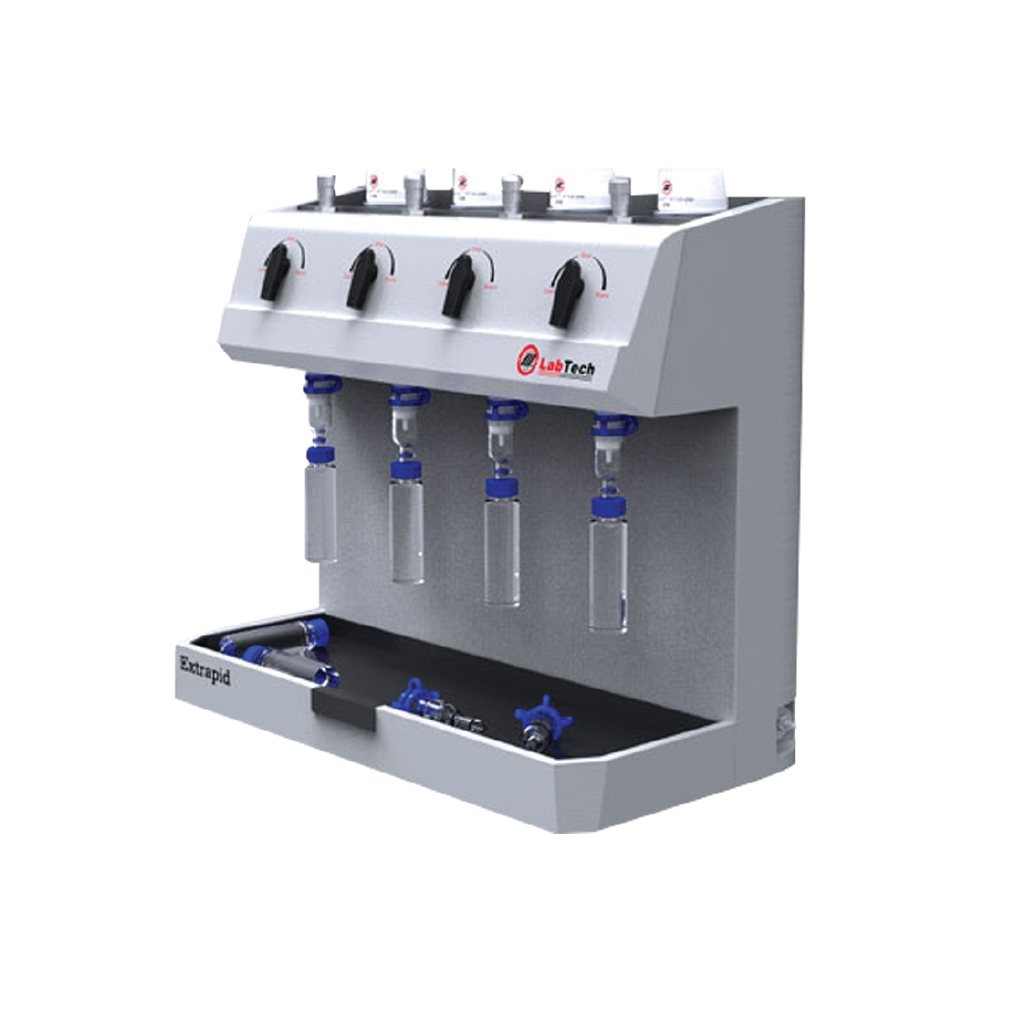

Extrapid manual SPE system is the ideal partner when treatment of large volume samples is required.
A unique and flexible extraction solution for standard and routine SPE needs in environmental analysis.

Technical Features

  • 3-ways valves to efficiently control the sample collection and the waste discharge

  • During operation process:

    • No need to switch ON/OFF the vacuum pump

    • No need to wait for venting and removing collection bottles

    • No need to drain the waste liquid and clean vacuum chamber

  • Up to 4 samples run individually or simultaneously

  • 1, 3, 6ml cartridge and 47, 90mm disk options

  • Flow control valve ensuring accurate flowrate and high reproducibility

  • Sample flowrate from 1 to 45ml/min

  • Parts directly in contact with solvents made of PTFE or stainless steel to ensure excellent anticorrosion resistance

Channels: 4 Flow Rate: 1mL/min - 5mL/min Dimensions(mm): 520x265x445 Weight (lbs): 26.45 Vacuum: 150mbar, 50L/min

Product Details

Labtech's manual SPE instrument, the Extrapid, applies SPE cartridges / discs in the same unit for the treatment of both large and small volume samples. Patented designs of exterior switching channels ensure the convenient and efficient switch between sample collection and waste discharge. During the operation process, there is no need to reopen the vacuum chamber or switch the vacuum pump on/off. Also there is no need to wait for venting.

Additional Information

  • 3-ways valves to efficiently control the sample collection and the waste discharge
  • Up to 4 samples can run individually or simultaneously
  • Sample flowrate from 1 to 45ml/min
  • Parts directly in contact with solvents are made of PTFE/stainless steel to ensure excellent anticorrosion resistance
  • 1, 3, 6ml cartridge and 47, 90mm disk option

Brand

LabTech

Extrapid Manual Cartridge-Disk SPE

Download
