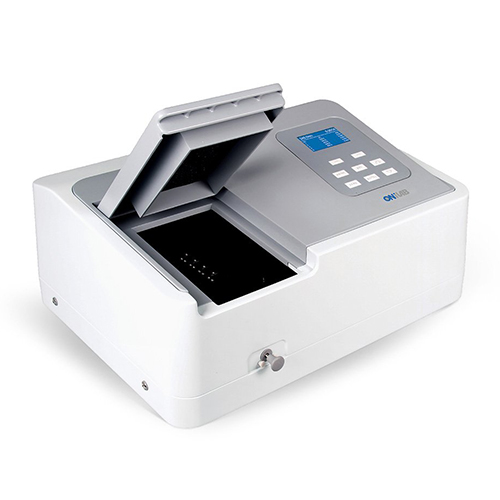

เครื่องวัดค่าดูดกลืนคลื่นแสง ชนิด Single Beam รุ่น SP-V11000

เครื่องวัดการดูดกลืนแสง (Spectrophotometer)

รุ่น SP-V11000
ยี่ห้อ
Onilab ประเทศ USA

View More

89,000.00 ฿

Support
เปรียบเทียบสินค้า

Product Description



Spectrophotometer SP-V1000/SP-UV1000/SP-V1100/SP-UV1100

Spectrophotometer is essential in the identification and quantification of different compounds in solutions by measuring the intensity of wavelengths in a spectrum of light compared with the intensity of light from a standard source.
These measure the absorbance, % transmittance and concentrations of samples and are hence best suitable in many areas of science including metallurgy, geology, physical chemistry, pharmaceutical chemistry, forensic physics, biotechnology and microbiology etc.

LCD Digital display with consistent interface design
Uniform operation steps with easy to set and program LCD digital display guarantees smooth flowing procedures. Data is displayed in graphical format on wide LCD display (128 x 64dots).
Automatic wavelength calibration.
Data Storage: These can save and display 200 groups of data, data can also be restored after power failure.
Auto selection of tungsten/ deuterium lamps which are suitable for a wavelength range of 190-1100nm.
‘Wave Professional’ Software: The optional ‘Wave Professional’ Software and built in USB port, enables to connect and control the spectrophotometer through PC along data documentation of other quantitative analysis reports.
A wide range of sample holder optional accessories to accommodate the cuvettes in 5-100nm path length range.

Model SP-V1000 SP-UV1000 SP-V1100 SP-UV1100
Optical System Single Beam Single Beam Single Beam Single Beam
Light Source Tungsten lamp Tungsten lamp & Deuterium lamp Tungsten lamp Tungsten lamp &Deuteri- um lamp
Spectral Bandwidth 4.0nm 4.0nm 2.0nm 2.0nm
Wavelength Range 325-1000nm 200-1000nm 320-1100nm 190-1100nm
Wavelength Accuracy ±2nm ±2nm ±0.5nm ±0.5nm
Wavelength Repeatability ≤1nm ≤1nm ≤0.3nm ≤0.3nm
Photometric Range -0.3 – 3.0 A, 0 – 200%T -0.3-3.0A, 0-200%T -0.3 – 3.0 A, 0 – 200 %T -0.3 – 3.0 A, 0 – 200%T
Photometric Accuracy ±0.003 A @ 0.5 A,
±0.006 A @ 1.0 A,
±0.5%T @ 100%T
±0.003 A @ 0.5 A,
±0.006 A @ 1.0 A,
±0.5%T @ 100%T
±0.002 A @ 0.5 A,
±0.004 A @ 1.0 A,
±0.3%T @ 100%T
±0.002 A @ 0.5 A,
±0.004 A @ 1.0 A,
±0.3%T @ 100%T
Photometric Repeatability ≤0.0015 A @ 0.5 A,
≤0.003 A @ 1.0 A,
≤0.25%T @ 100%T
≤0.0015 A @ 0.5 A,
≤0.003 A @ 1.0 A,
≤0.25%T @ 100%T
≤0.001 A @ 0.5 A,
≤0.002 A @ 1.0 A,
≤0.15%T @ 100%T
≤0.001 A @ 0.5 A,
≤0.002 A @ 1.0 A,
≤0.15%T @ 100%T
Stability ≤0.002 A/h @ 500 nm ( after preheat 2 hours) ≤0.002 A/h @ 500 nm ( after preheat 2 hours) ≤0.002 A/h @ 500 nm ( after preheat 2 hours) ≤0.002 A/h @ 500 nm ( after preheat 2 hours)
Stray Light ≤0.2%T @ 360nm ≤0.2%T @ 220&360nm ≤0.05%T @ 360nm ≤0.05%T @ 220 & 360nm
Sample Compartment 4-position, 10mm pathlength cuvette 4-position, 10mm pathlength cuvette 4-position, 10mm pathlength cuvette 4-position, 10mm pathlength cuvette
Display LCD LCD LCD LCD
Output USB Port & Parallel Port ( Printer) USB Port & Parallel Port ( Printer) USB Port & Parallel Port ( Printer) USB Port & Parallel Port ( Printer)
Power 110/220VAC,
50/60Hz, 80W
110/220VAC,
50/60Hz, 120W
110/220VAC,
50/60Hz, 80W
110/220VAC,
50/60Hz, 120W
Dimension(L×W×H) 490×360×210mm 490×360×210mm 490×360×210mm 490×360×210mm
Weight 10kg 12kg 10kg 12kg
Spectrophotometer is essential in the identification and quantification of different compounds in solutions by measuring the intensity of wavelengths in a spectrum of light compared with the intensity of light from a standard source. These measure the absorbance, % transmittance and concentrations of samples and are hence best suitable in many areas of science including metallurgy, geology, physical chemistry, pharmaceutical chemistry, forensic physics, biotechnology and microbiology etc. LCD Digital display with consistent interface design Uniform operation steps with easy to set and program LCD digital display guarantees smooth flowing procedures. Data is displayed in graphical format on wide LCD display (128 x 64dots). Automatic wavelength calibration. Data Storage: These can save and display 200 groups of data, data can also be restored after power failure. Auto selection of tungsten/ deuterium lamps which are suitable for a wavelength range of 190-1100nm. ‘Wave Professional’ Software: The optional ‘Wave Professional’ Software and built in USB port, enables to connect and control the spectrophotometer through PC along data documentation of other quantitative analysis reports. A wide range of sample holder optional accessories to accommodate the cuvettes in 5-100nm path length range.
น้ำหนัก 22.00 kg
ขนาด 500 × 475 × 245 cm

Brand

Onilab

Laboratory Instruments .pdf

Download
