เครื่องตรวจวัดความเป็นกรดด่าง (pH, mV, Temp) รุ่นPL-700ALS,GONDO

pH Electrode, Cond. Cell, DO probe, T/probe, Standard, solution, AC/DC adaptor, Electrode holder, Membranecap, Electrolyte, USB Software & Connection cable,Magnetic Bar for PL-700ALS
View More

29,600.00 ฿ 27,400.00 ฿

Support
เปรียบเทียบสินค้า

Product Description

รายละเอียดและคุณลักษณะเฉพาะ

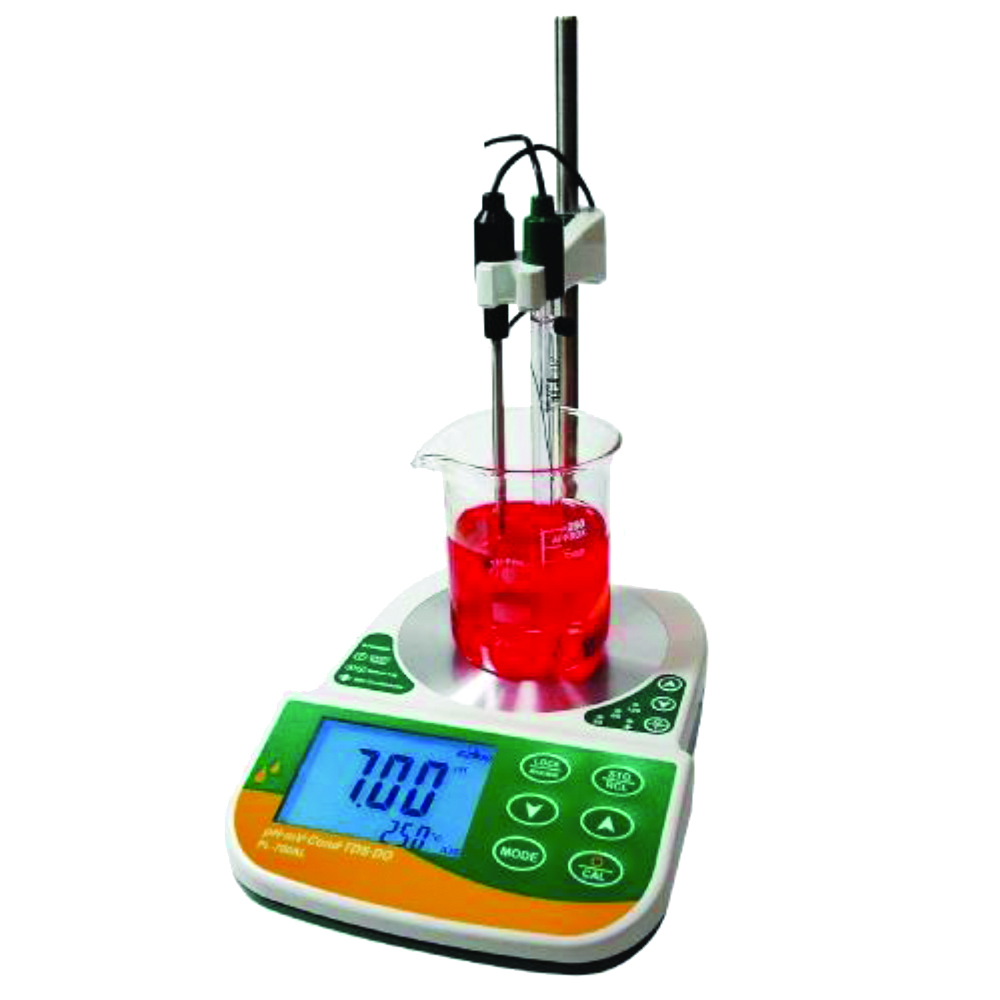

เครื่องตรวจวัดความเป็นกรดด่าง (pH, mV, Temp) รุ่น700ALS,GONDO

We thank you for having purchased PL-700 series bench
top multi-parameters meter.
Before using the instrument, please note that the
operation instructions should be read carefully, which will
help you to operate and maintain the instrument, as well
as to avoid trouble caused by unsuitable operation and
maintenance.
PL-700 series bench top multi-parameters meter employs
leading edge technology with integrated microprocessor,
which is suitable for measurement in water solutions for
institutes, industrial labs and production fields.
The information presented in this manual is subject to
change without notice as improvements are made.

  1. Microprocessor based designed, and rugged housing with splash proof keyboard.
  2. The large backlight LCD displays pH or ORP or Conductivity or DO and Temperature simultaneously.
  3. Automatic Temperature Compensation(ATC), Manual Salinity(MSC) and Altitude(MAC) Compensation.
  4. Memory function stores and recalls up to 150 points. MAX/MIN and data Lock. Degree ℃/℉ are switchable.
  5. Combine special platform and electrode holder, or stirrer(Optional) for measuring convenient.
  6. The TDS value is determined by multiplying a conductivity reading by a known ratio in the range of 0.50 to 1.00.
  7. Output data for capturing on PC directly via USB.

Models:

  1. PL-700AL(S): pH, mV, Conductivity, TDS, Salt, DO, Temperature, (Stirrer)
  2. PL-700PC(S): pH, mV, Conductivity, TDS, Salt, Temperature, (Stirrer)
  3. PL-700PD(S): pH, mV, DO, Temperature, (Stirrer)
  4. PL-700PV(S): pH, mV, Temperature, (Stirrer)

Specifications:

pH ORP
Range -2.00~16.00 pH -1999 ~ -200 mV -199.9 ~ 499.9 mV 500 ~ 2000 mV
Accuracy ±0.01+1 digit ±2+1 digit
Resolution 0.01 pH 0.1/1 mV
Compensation ATC: 0~100 ℃ N/A
Conductivity TDS Salt
Range 0.0~ 199.9μS 200~ 1999μS 2.00~ 19.99 mS 20.0~ 100.0 mS 0.0~131.9 ppm 132~1319 ppm 1.32~13.19 ppt 13.2~66.0 ppt 0.0~99.9 ppm 100~999 ppm 1.00~9.99 ppt 10.0~50.0 ppt
Accuracy ±2% FS ±2% FS ±2% FS
Resolution 0.1/1μS/0.01/0.1 mS 0.1/1ppm/0.01/0.1ppt 0.1/1ppm/0.01/0.1ppt
Compensation ATC: 0~60 ℃ ATC: 0~60 ℃ ATC: 0~60 ℃
DO O2 Temp.
Range 0~20.00 mg/L 0~20.00 ppm 0~200.0 % 0~110 ℃
Accuracy ±0.2+1 digit ±2% FS ±0.2+1 digit
Resolution 0.01 mg/L 0.10% 0.1 ℃
Compensation ATC: 0~50 ℃ MSC: 0~50 ppt MAC:0-20000 ft

Power 9V DC  (AC adaptor)
Dimension 103 x 145 x 32 mm without electrode holder
Weight 700 g (meter only)

Accessories for complete kit :

PL-700AL PL-700PC PL-700PD
pH glass electrode pH glass electrode pH glass electrode
Conductivity cell Conductivity cell DO probe
DO probe Temp. probe Temp. probe
Temp. probe Standard solution Membrane cap x 2 pcs
Membrane cap x 2 pcs Electrode holder Electrolyte x 20 ml
Electrolyte x 20 ml Software and USB cable Standard solution
Standard solution DC/AC adaptor Electrode holder
Electrode holder instruction manual Software and USB cable
Software and USB cable Gift box DC/AC adaptor
DC/AC adaptor Optional: Stirrer instruction manual
instruction manual Gift box
Gift box Optional: Stirrer
Optional: Stirrer

Brand

GonDo EzDo

pH, mV, Temp รุ่น700ALS

Download
