เครื่องตรวจวัดความเป็นกรดด่างชนิดพกพา pH, Do, Temp Pocket Meter รุ่น7011,GONDO
4,000.00 ฿
สั่งจองสินค้าได้
Support เปรียบเทียบสินค้าProduct Description
รายละเอียดและคุณลักษณะเฉพาะ
เครื่องตรวจวัดความเป็นกรดด่างชนิดพกพา pH, Do, Temp Pocket Meter รุ่น7011,GONDO
- เป็นเครื่องตรวจวัดความเป็นกรดด่าง, มิลลิโวลล์ และ อุณหภูมิของสารละลายชนิดพกพา
- ตัวเครื่องควบคุมการทำงานด้วย Microprocessor
- ตัวเครื่องถูกออกแบบป้องกันน้ำเข้าตัวเครื่อง (Waterproof )
- ตัวเครื่องมือหน้าจอชนิด LCD display
- ตัวเครื่องมีระบบ Automatic Temperature Compensation (ATC)
- ตัวเครื่องมีระบบตรวจสอบแบตเตอร์รี่ และ เมื่อไม่ใช้งานติดต่อกัน 10 นาที ตัวเครื่องจะปิดตัวเองอัตโนมัติ
- ตัวเครื่องสามารถวัดค่าความเป็นกรดด่าง ( pH )ได้ดังนี้
- สามารถวัดค่าความเป็นกรดด่างได้ในช่วง – 2 ถึง 16
- มีค่าความถูกต้อง (Accuracy) อยู่ในช่วง ±0.01 + 1 digit
- มีค่าความละเอียด (Resolution) เท่ากับ 0.01 pH
- ตัวเครื่องสามารถ Calibration ได้ในช่วง pH 4.00, 7.00 และ 10.01
- ตัวเครื่องสามารถวัดค่าความต้านทานไฟฟ้า( mV )ได้ดังนี้
- สามารถวัดค่าความต้านทานไฟฟ้าได้ในช่วง – 1000 ถึง 1000
- มีค่าความถูกต้อง (Accuracy) อยู่ในช่วง ± 2 + 1 digit
- มีค่าความละเอียด (Resolution) เท่ากับ 1mV
- ตัวเครื่องสามารถวัดค่าอุณหภูมิ( Temp )ได้ดังนี้
- สามารถวัดค่าอุณหภูมิได้ในช่วง 0 c ถึง 90 c
- มีค่าความถูกต้อง (Accuracy) อยู่ในช่วง ± 0.2c + 1 digit
- มีค่าความละเอียด (Resolution) เท่ากับ 1 c
- ตัวเครื่องใช้ถ่านขนาด 1.5 V ชนิด AAA จำนวน 4 ก้อน
- ตัวเครื่องมีขนาด Meter เท่ากับ 195 x 40 x 36 มิลลิเมตร
- ตัวเครื่องมีน้ำหนัก 135 กรัม
- อุปกรณ์ประกอบ
- กระเป๋าพลาสติกสำหรับจัดเก็บตัวเครื่อง จำนวน 1 ใบ
- ถ่านขนาด 1.5 V ชนิด AAA จำนวน 4 ก้อน
- น้ายา Calibrate pH 4&7 อย่างละ 1 ขวด จำนวน 1 ชุด
- สายสำหรับคล้องคอ จำนวน 1 เส้น
- น้ำยา Soaking Solution จำนวน 1 ขวด
- มีคู่มือการใช้งานภาษาอังกฤษ จำนวน 1 ชุด
- รับประกันคุณภาพ 1 ปี (หัว probe รับประกัน 6 เดือน)
- เป็นผลิตภัณฑ์จากประเทศไต้หวัน

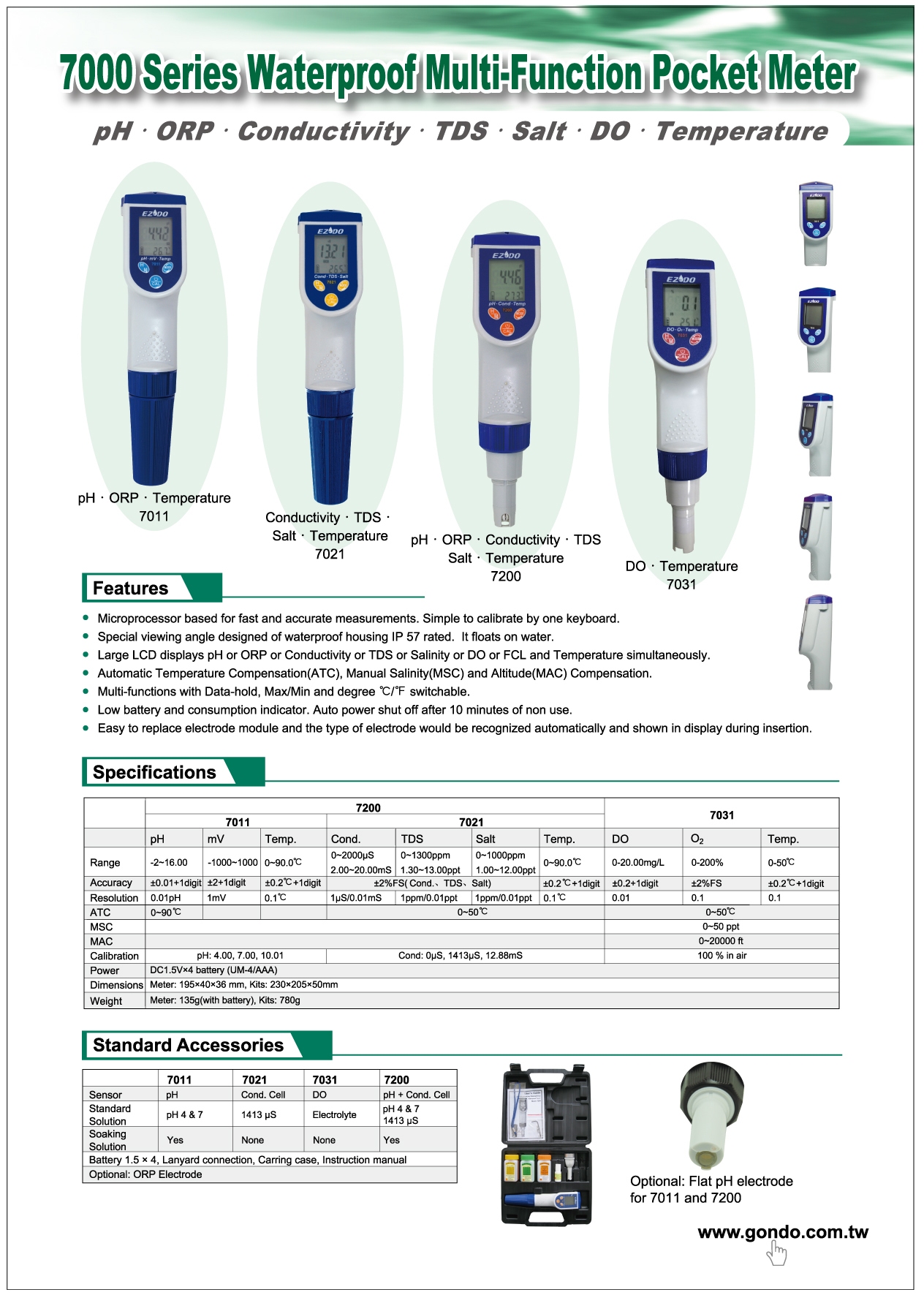

- Microprocessor based for fast and accurate measurements.
- Special viewing angle designed of waterproof housing IP 57 rated. It floats on water.
- Large LCD display pH or ORP or Conductivity or TDS or Salinity or DO and Temperature Simultaneously.
- Simple to calibrate by one keyboard and automatic temperature compensation(ATC), Manual Salinity(MSC) and Altitude(MAC) Compensation.
- Multi-functions with Data-hold, Max/Min and shows PTS after calibration. Degree ℃/℉ are switchable.
- Low battery and consumption indicator. Auto power shut off after 10 minutes of non use.
- Easy to replace electrode module, and the type of electrode would be recognized automatically and shown in display during insertion.
Specifications
7200 | |||||||
7011 | 7021 | ||||||
pH | mV | Temp. | Cond. | TDS | Salt | Temp. | |
Range | -2 ~ 16.00 | -1000 ~ 1000 | 0 ~ 90 ℃ | 0 ~ 2000 μS 2.00~20.00 mS | 0 ~ 1300 ppm 1.30 ~ 13.00 ppt | 0 ~1000 ppm 1.00 ~ 12.00 ppt | 0 ~ 90 ℃ |
Accuracy | ± 0.01 + 1digit | ±2 + 1digit | ± 0.2 + 1digit | ± 2% FS ( Cond., TDS, Salt) | ± 0.2 ℃ + 1digit | ||
Resolution | 0.01 | 1 | 0.1 ℃ | 1 μS/0.01 mS | 1 ppm/0.01 ppt | 1 ppm/0.01 ppt | 0.1 ℃ |
ATC | 0 ~ 90 ℃ | 0 ~ 50 ℃ | |||||
Calibration | pH 4.00, 7.00, 10.01 | 0, 1413 μS, 12.88 mS | |||||
Power | DC1.5V x 4 battery size:AAA/UM-4 |
7031 | |||||
DO | O2 | Temp | |||
Range | 0~20.00mg/L | 0~200% | 0~90.0℃ | ||
Accuracy | ±0.2 + 1digit | ± 2% FS | ±0.2+1 digit | ||
Resolution | 0.01 | 0.1 | 0.1 | ||
ATC | 0~50 ℃ | ||||
MSC | 0~50 ppt | ||||
MAC | 0-20000 ft | ||||
Calibration | 100% in air | ||||
Power | DC1.5V x 4 battery size:AAA/UM-4 | ||||
Dimensions | Meter: 195 x 40 x 36 mm, Kits: 230 x 205 x 50 mm | ||||
Weight | Meter: 135g(with battery), Kits: 780g |
Accessories for complete kit:
7011 | 7021 | 7031 | 7200 | |
Sensor | pH | Cond. Cell | DO | pH + Cond. Cell |
Standard Solution | pH 4 & 7 | 1413 μS | None | pH 4 & 7 1413 μS |
Soaking Solution | Yes | None | Yes | Yes |
Battery 1.5 × 4, Lanyard connection, Carring case, Instruction manual | ||||
Optional: OPR Electrode |
Brand
GonDo EzDo
