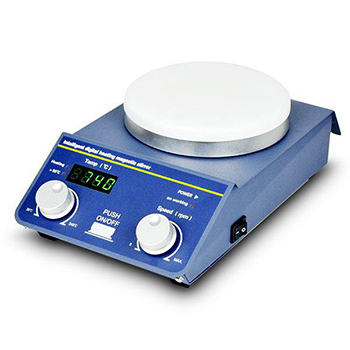

เครื่องกวนสารให้ความร้อนแบบดิจิตอล (์Digital magnetic stirrer hot plate series) รุ่น TP-350E,ยี่ห้อ Miulab

The heating plate of the digital magnetic stirrer hot plate series is made of special Ceramic. With special heating technique, the heating plate can reach temperature up to 340°C. Magnetic stirring provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.

View More

เปรียบเทียบสินค้า

Product Description

รายละเอียดและคุณลักษณะเฉพาะ



เครื่องกวนสารให้ความร้อนแบบดิจิตอล (์Digital magnetic stirrer hot plate series) รุ่น TP-350E,ยี่ห้อ Miulab

คุณสมบัติของ Hotplate Stirrer รุ่น TP-350E

  • เป็นเครื่องกวนสารละลายพร้อมให้ความร้อน (Hotplate Stirrer)
  • เครื่องสามารถปรับตั้งอุณหภูมิสูงสุดได้ตั้งแต่ 45 ถึง 340 องศาเซลเซียส
  • มีส่วนควบคุมอุณหภูมิเป็นแบบ PID
  • มีแผงควบคุมการใช้งานปรับความเร็วรอบและปรับอุณหภูมิด้านหน้าเครื่องแบบแยกส่วนกัน
  • สามารถตั้งค่าความเร็วรอบ (rpm) ได้สูงสุด 1,800 รอบต่อนาที
  • แผ่นให้ความร้อนมีพื้นที่รองรับภาชนะ (Platform Size) มีขนาดเส้นผ่านศูนย์กลาง 137 มิลลิเมตร สามารถรองรับน้ำหนักในการกวนสารได้สูงสุดประมาณ 20 ลิตร
  • เครื่องมีหน้าจอแสดงผลอุณหภูมิและความเร็วรอบเป็นตัวเลขดิจิตอลที่ด้านหน้าเครื่อง
  • ใช้กำลังไฟฟ้าประมาณ 600 วัตต์ (Watts)
  • รับประกันคุณภาพ 1 ปี
1. Metal plate shell, firm and durable, thermostability and anti-corrosion. 2. Special heating technique, the heating plate can reach temperature up to 340°C. 3. PID for temperature control. Two display windows. High precision measurement. Single button operation.Inner and outer PT1000 for thermometry. Silicon controlled for output. With couple broken protection function. 4. Available for heating and stirring standard/non-standard reaction flasks from 50ml to 1000ml. 5. DC brushless motor makes stable operation, low noise, long using life and no spark. 6. The heating plate is made of special Ceramic, beautiful, antiseptic and easy for cleaning. 7. The control panel designed  30°slopes for convenient operation. 8. Magnetic stirring technology.Low speed but stable,high speed but powerful.
  Model   TP-350   TP-350S   TP-350E
  Platform Size   Φ137mm   Φ137mm   Φ137mm
  Platform Material   Ceramic   Ceramic   Ceramic
  Speed Range   /   100 ~1800rpm   0 ~1800rpm
  Temp. Control Range (surface)   R.T.+5℃ ~340℃   R.T.+5℃ ~340℃   R.T.+5℃ ~340℃
  Temp. Setting Range (surface)   30℃ ~340℃   30℃ ~340℃   30℃ ~340℃
  Temp. Stability   ±3℃   ±3℃   ±3℃
  Time Range   1min ~99h59min   continuous   continuous
  Stirring Point Quantity   /   1 point   1 point
  Max. Stir Capacity (H2O)   /   20L   20L
  Max. Size of Stirrer Stick   /   80mm   80mm
  External Interface Temp. Sensor   PT1000   PT1000   /
  Adjustable Safety Loop Min. Temp.   50℃   50℃   50℃
  Adjustable Safety Loop Max. Temp.   350℃   350℃   350℃
  Voltage   AC 220V/ AC 110V, 50/60Hz   AC 220V/ AC 110V, 50/60Hz   AC 220V/ AC 110V, 50/60Hz
  Power   600W   600W   600W
  Fuse   250V, 4A/8A, Ф5x20   250V, 4A/8A, Ф5x20   250V, 4A/8A, Ф5x20
  Dimension (WxDxH)   156 x 270 x 70mm   156 x 270 x 70mm   156 x 270 x 70mm
  Net Weight   2.2kgs   2.6kgs   2.6kgs

 Type  SP-A  SP-B  SP-C  SP-D  SP-E  SP-F  SP-G  SP-I
 Dimension (mm)  Φ6X10  Φ6X20  Φ8X25  Φ6X30  Φ8X35  Φ8X45  Φ9X60  Φ9X70


Brand

MIULAB

Hotplate Stirrer รุ่น TP-350E

Download
